Communicators, Cameras, & GPS

Item

Description

Automatic Voice Dialer

The USP1 requires a land phone line and is capable of sending two separate voice message alarm for alarm or emergency. The USPS1 is programmable in any language and can calls up to 4 telephones, pagers or cell phones. The USPS1 also has built in line seizure, EEPROM and listen in two-way features. All technical support for this product is provided directly by the manufacturer. Part # USP1

Digital Cellular Voice Dialer

The USP12 automatically calls up to eight telephone numbers, pagers or other cell phones. The USP12 includes power transformer with MC-2a charge card and can be connected directly to 12VDC for a totally standalone system. Works with popular Motorola cell phones (not included). Part # USP12
Cell Phones that can be used with dialer:
Cellular phone not included. CVD is compatible with Motorola models V120, V60 (all variants except V60p and V60v), T720, T721, T722i, T730, T731, V300, V330, V400, V600, V635, V500, V505, V525, V547, V551, and V555. Also, V60s, if battery cover is removed.

USPS-4000 Cellular Camera

The USP4000 allows you to send live shots of your boat or other secured item to a PC or cellular phone. The USPS can be triggered by the Flagship Marine Security alarm system, internal PIR system, change in temperature or remotely by cell phone, PC or PDA. The USPS-4000 requires a dedicated Cingular account that uses multimedia messaging. All technical support for this product is provided directly by the manufacturer. Cingular cellular service rates start at $2.95 per month. Part # USP4000

LCD FM Alarm Pager

The CS2500 LCD FM Alarm Pager transmits an alarm signal to a palm size handheld receiver. Typically range is less than one mile and may be useful for boats at moorings or docked close to home. Part # CS2500

DV9170 MemoCam Color Camera

The MemoCam can be mounted in cabins and protected salons. It is a standalone CCTV system in one device. It is triggered by the alarm system or the internal PIR motion detector and automatically records events on the 16mB memory card module. To analyze the recorded events, the memory card can be removed and viewed on a PC. The MemoCam's features a remote control for manual operation. The color camera is 1.2 mega-pixels and can be connected directly to a DVR or PC. Part # DV9170

GPS Anyplace Marine
FMS-GPS GPS Anyplace Marine

GPS Anyplace Marine - Part # FMS-GPS

GPS Anyplace Marine is a GPS based mobile asset tracking device. It is equipped with a quad band GSM/GPRS transceiver with a high gain GPS receiver to ensure that your vessel is always virtually visible. The compact size makes it ideal for covert out of sight installation.

The FMS-GPS kit comes with the following:

GPS unit, wiring harness and antennas.
High water switch.
High ambient temperature sensor.
Alarm relay interface.

GPS Anyplace Marine provides worldwide coverage and offers the user a number of flexible plans. The standard marine plan includes geo-fencing, track on demand and text/e-mail notifications of burglary, high water or high ambient temperature.

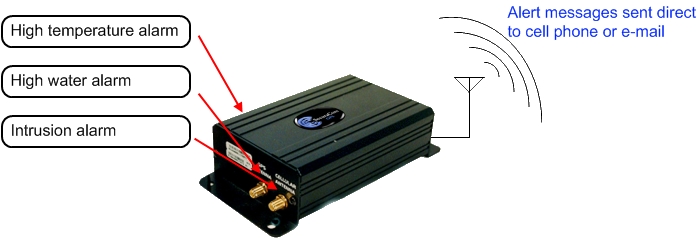

FMS-GPS Diagram

Reliable Data Delivery

GPS Anyplace Marine sends all messages in UTC time-stamped and mathematical algorithm to ensure successful delivery. Up to 2,400 records can be stored if the vessel is in a non-coverage situation and automatically send that information to the server when normal communication verification is sent. This eliminates lost data reports of locations and events.

Networks Supported

GPS-Marine is currently deployed in the US, Canada, Europe, China, Mexico, Puerto Rico, South America and Latin America. Network support includes AT&tT/Cingular, T-Mobile, Orange, Oi, TIM, Verizon, VIVO and Vodafone.

Certification

Our product is CE certified for international use and is manufactured under ISO 9000 compliancy.

Features	Benefits
Compact size: L 6.375" (16cm) W 3.25" (8.2cm) H 1.50" (3.0cm)	Makes for easy covert installation
Digital GSM/GPRS communication protocol: 850/900/1800/1900MHz	Provides for worldwide coverage and future GSM network frequency additions
100 programmable virtual borders (geo-fences)	Provides alerts for vessel travelling into or out of a geographical "no fly" zones
Over-the-air remote device configuration settings	Eliminates the need to remove unit from vehicle to change customer preferences for settings like speed, boundaries, stop times etc.
On demand data logging	Keeps records per day of all the events and locations for future review and analysis
Out of range data logging	Provides data store and forward of 2700 daily event records to prevent loss of data in areas of poor/no reception
Normal-standby-sleep modes with only 80mA current draw	Provides longer vehicle battery life
3 inputs and 2 outputs (standard) 14 inputs (optional at extra cost)	Provides for remote monitoring and automatic reporting of client defined events such as alarm event or high water
Speed and Idle-time reporting	Provides over-speed alerts as well as non-productive idle times to reduce operational costs and improve efficiency
Movement alert	Provides for start and stop reports, theft alerts and unauthorized vessel use
Trip reporting	Shows time and date of every trip including starts, stops and miles travelled as well as time en route and route taken
Battery backup	In the event of battery disconnect unit automatically reports for 27-36 hours
Low battery reports	Alerts customer when main battery is falling below normal operating requirements saving time and money
Optional Module/ Supports up to 20 temperature probes, WiFi-802.11G	Designed for monitoring temperature sensitive cargo while in transit
